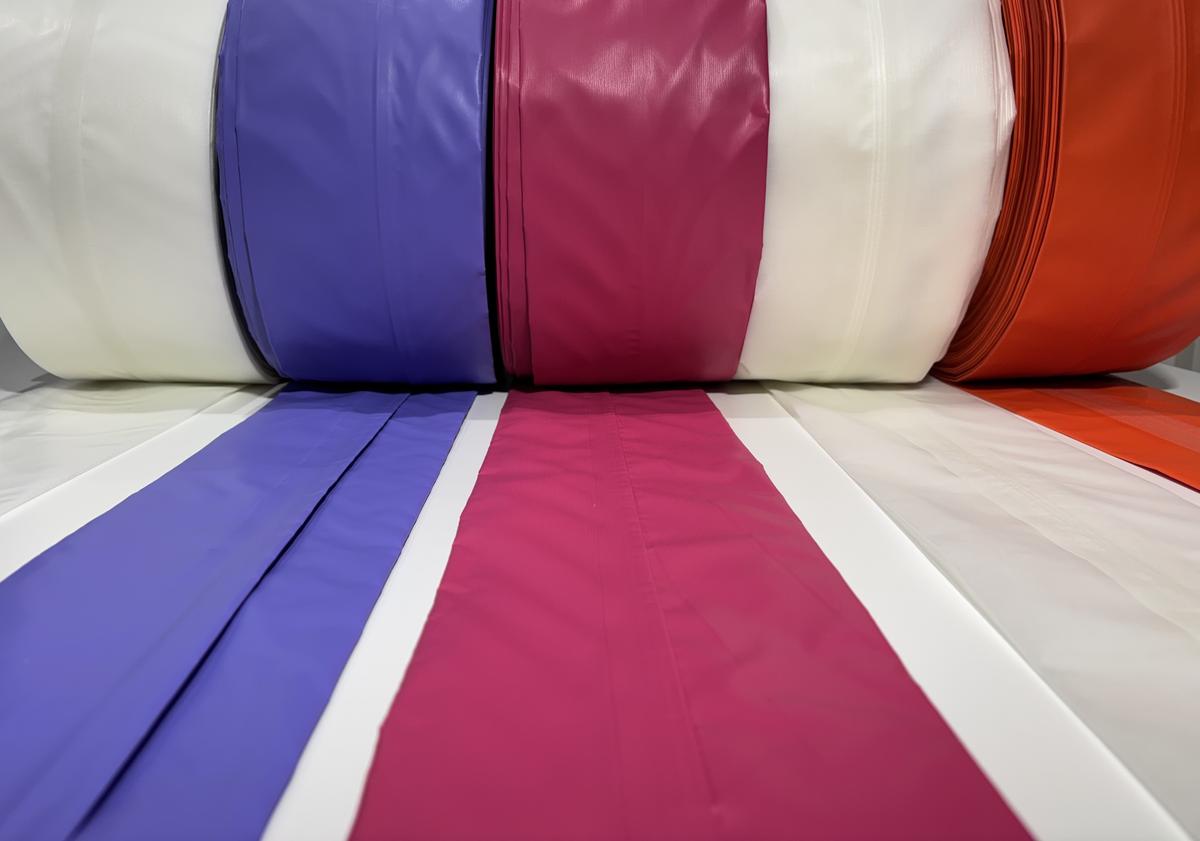

Calibration hoses
PVC-coated polyester calibration hose in light and heavy duty constructions.
The calibration hose carries the pressure that holds the impregnated liner against the host pipe while it cures. Both constructions work with the common resin systems — UV vinyl ester, silicate and epoxy.
- Light duty · 50 °C
- Heavy duty · 80 °C
- 50 m / 100 m rolls
Technical data
Welded LD — light duty
| Material | Welded LD — available Transparent or Violet |
|---|---|
| Base fabric | PVC-coated polyester |
| Seam | Overlapped and heat-welded seam (light duty) |
| Compatible resins | UV Vinyl Ester · Silicate · Epoxy |
| Standard roll lengths | 50 m, 100 m |
| Maximum working temperature | 50 °C |
| Pipe diameter (mm) | 50 | 70 | 100 | 125 | 150 | 200 | 225 | 250 | 300 |
|---|---|---|---|---|---|---|---|---|---|
| Max. recommended pressure (bar) | 0.80 | 0.68 | 0.55 | 0.51 | 0.47 | 0.45 | 0.44 | 0.42 | 0.40 |
Stitched & Welded HD — heavy duty
| Material | Stitched & Welded HD — available Transparent or Orange |
|---|---|
| Base fabric | PVC-coated polyester |
| Seam | Overlapped, stitched and tape-welded seam (heavy duty) |
| Compatible resins | UV Vinyl Ester · Silicate · Epoxy |
| Standard roll lengths | 50 m, 100 m |
| Maximum working temperature | 80 °C |
| Pipe diameter (mm) | 100 | 125 | 150 | 200 | 225 | 250 | 300 |
|---|---|---|---|---|---|---|---|
| Max. recommended pressure (bar) | 1.70 | 1.60 | 1.40 | 1.20 | 1.00 | 0.80 | 0.60 |
Always confirm against the current data sheet before use.
About this product
Duty class is chosen from the working pressure and the diameter of the run: the heavy duty construction carries roughly three times the pressure of the light duty hose at DN 100 and tolerates a higher curing temperature.
All hose is supplied for single use only; re-use is at the customer's risk. In use the hose must be supported outside the pipe, kept off grit and gravel, and never walked on. Because of sizing at manufacture, please state whether the hose is intended as a calibration hose or a pre-liner when ordering.
Documents
Need this for a project?
Tell us the diameter, length and application and our technical team will confirm the right liner and resin combination.
