Structural rehabilitation

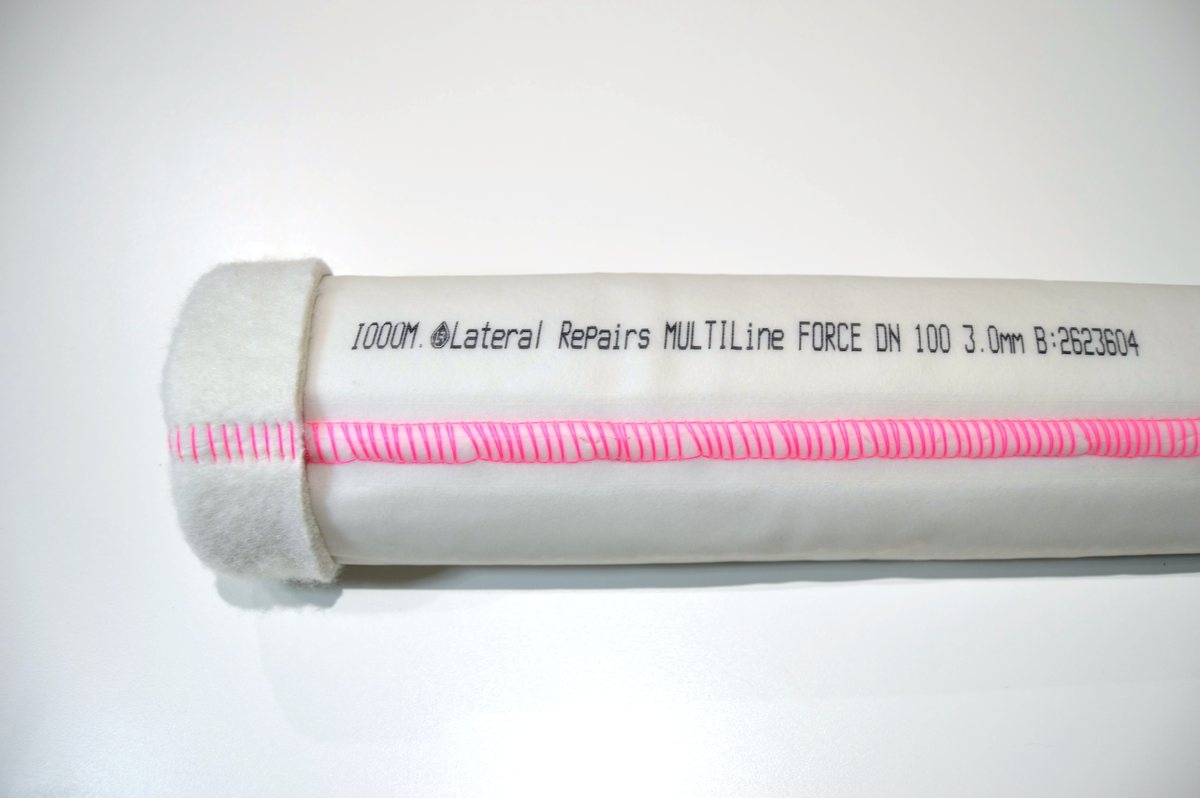

MULTIline FORCE
High-strength hose liner for the structural rehabilitation of pipes.
High-strength liner rated to 100 °C — the choice when the new pipe has to carry the load itself.
- DN 100 – 300
- 3.00 mm wall
- 100 °C
Technical data
| Product code | FORCE |
|---|---|
| Length | 50 m; 100 m / 164 ft; 328 ft |
| Diameter | 100 mm – 300 mm / 4 inch – 12 inch |
| Wall thickness | 3.00 mm / 0.12 inch |
| Liner undersized | 10 % |
| Heat resistance | Max. 100 °C / 212 °F |
| Negotiating bends | Max. 45° |
| Material | Needle-punched fleece with polypropylene (PP) coating |
| Textile | Polyester, 650 g/m² |
| Coating | PP, 300 g/m² |
| Colour / coating | White / Milky white |
| Water penetration | ≥ 500 mbar |
| Storage | Protected from light, dry |
Always confirm against the current data sheet before use.
