Everyday sewer & pipe

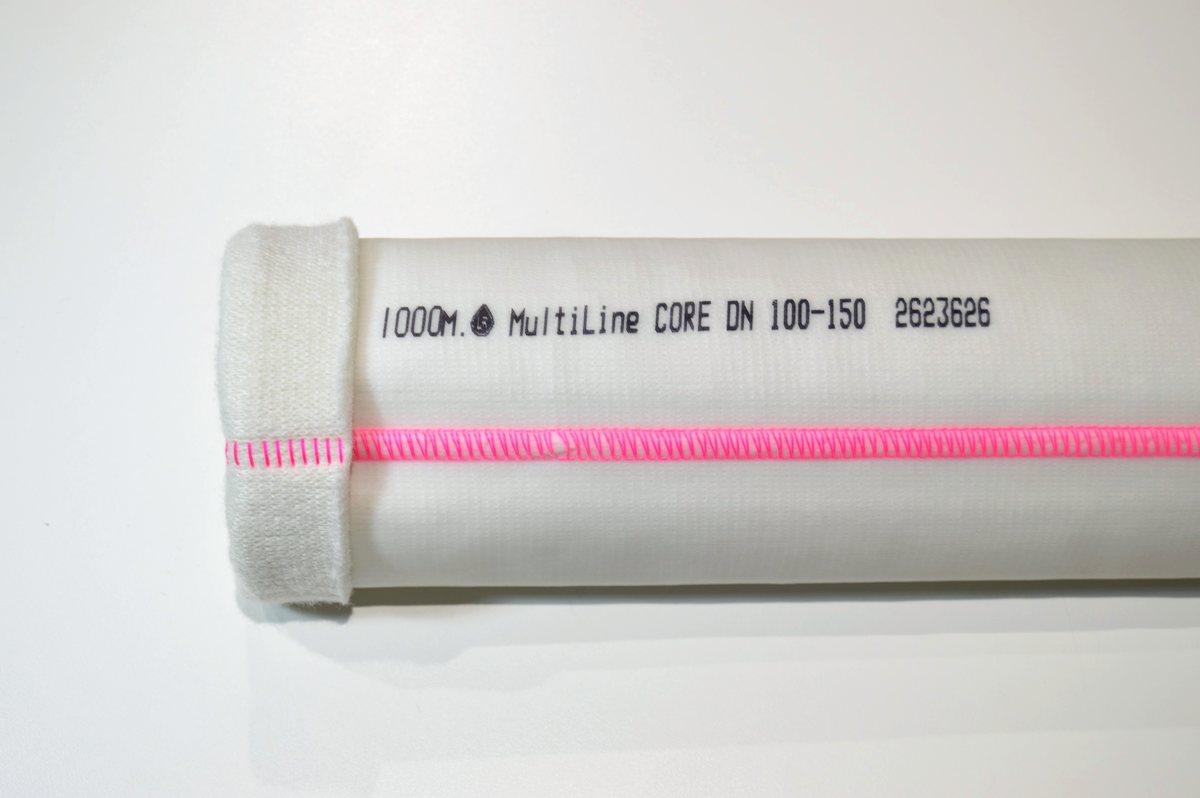

MULTIline CORE
Multi-knitted hose liner for the trenchless inner lining of pipes.
The dependable all-rounder for standard sewer and pipe rehabilitation, with a higher heat resistance than FLEX and the same 90° bend capability.
- DN 70 – 250
- 4.50 mm wall
- 85 °C
Technical data
| Product code | CORE |
|---|---|
| Length | 50 m; 100 m / 164 ft; 328 ft |
| Diameter | 70, 80, 100, 125, 150, 200, 225, 250 |
| Wall thickness | 4.50* mm / 0.18* inch |
| Liner undersized | 13 % |
| Heat resistance | Max. 85 °C / 167 °F |
| Negotiating bends | Max. 90° |
| Material | Multi-knitted fleece with one-sided polypropylene (PP) coating |
| Textile | Polyester, 550* g/m² |
| Coating | One side PP, 300* g/m² |
| Colour / coating | White / Transparent |
| Water penetration | ≤ 550 mbar / ≤ 7.97 psi |
| Storage | Protected from light, dry |
Values marked * are nominal. Always confirm against the current data sheet.
Need this for a project?
Tell us the diameter, length and application and our technical team will confirm the right liner and resin combination.
