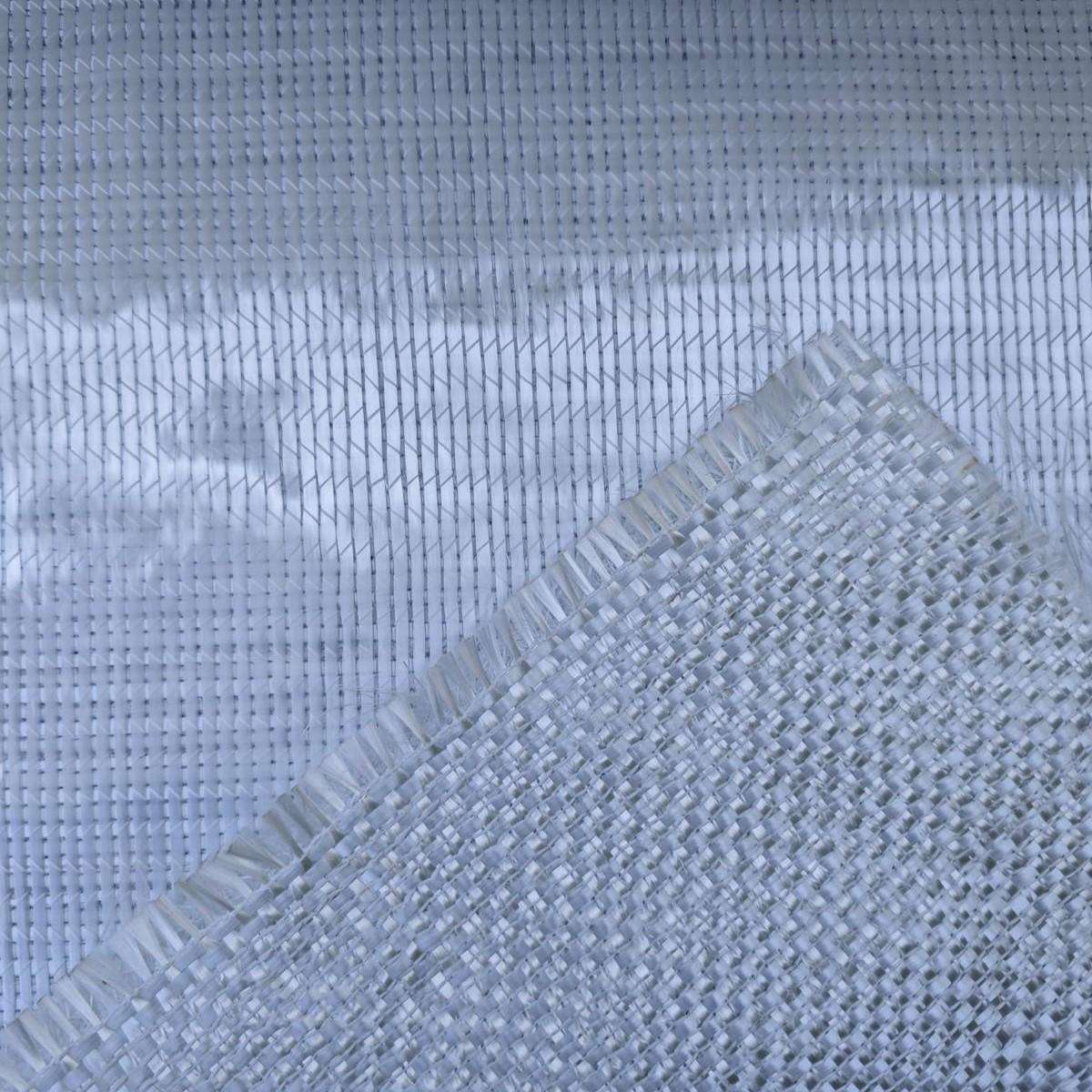

Glassfiber Complex 1050
E-CR glass-fibre reinforcement complex for structural pipe rehabilitation and CIPP lining.
A two-layer stitched complex — chopped strand mat backed by woven roving — used where the finished laminate has to carry structural load.
- E-CR glass
- 1050 g/m² ± 8 %
- 125 / 250 cm width
Technical data
| Glass composition | E-CR Glass |
|---|---|
| Weight per unit area | 1050 g/m² ± 8 % (deviation from nominal) |
| 1st layer — Chopped Strand Mat | 500 g/m² |
| 2nd layer — Woven Roving | Warp 0°: 150 g/m² · Weft 90°: 410 g/m² |
| Bonding | Stitching |
| Sewing thread (polyester) | ≤ 15 g/m² |
| Moisture content | < 0.15 % |
| Edges | Trimmed |
| Width | 125 cm / 250 cm |
| Coupling agent | Silane |
| Tube diameter, internal | 70 mm |
Always confirm against the current data sheet before use.
About this product
Condition the material for 24 hours at room temperature in the application area before use. Store it in its original packaging, keep it dry, and keep the storage temperature below 35 °C.
Rolls are packed in stretch film and supplied on pallets. Other roll widths, tube diameters and lengths are available on request. Resin quantity can be calculated with the free Lateral Repairs app.
Need this for a project?
Tell us the diameter, length and application and our technical team will confirm the right liner and resin combination.
