Advanced technology

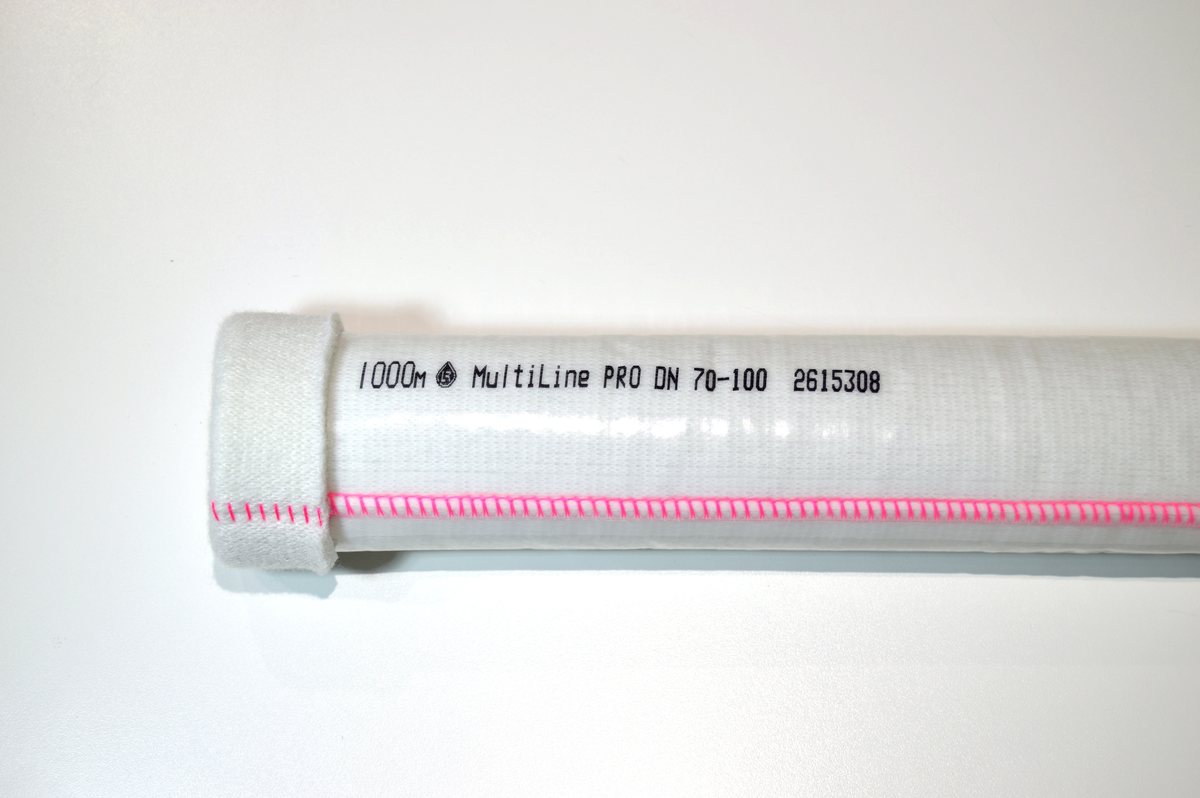

MULTIline PRO 4.5 mm
Hose liner for the trenchless inner lining of defective, leaking and statically impaired pipes.
TPU-coated multi-knitted liner for demanding, high-specification work — up to DN 300 while still negotiating 90° bends.
- DN 70 – 300
- 4.50 mm wall
- TPU coating
Technical data
| Product code | PRO |
|---|---|
| Length | 50 m; 100 m / 164 ft; 328 ft |
| Diameter | 70, 80, 100, 125, 150, 200, 225, 250, 300 |
| Wall thickness | 4.50* mm / 0.18* inch |
| Liner undersized | 13 % |
| Heat resistance | Max. 70 °C / 158 °F |
| Negotiating bends | Max. 90° |
| Material | Multi (knitted) fleece with one-sided TPU |
| Textile | Polyester, 550* g/m² |
| Coating | One side TPU, 150* g/m² |
| Colour / coating | White / Transparent |
| Water penetration | ≤ 550 mbar / ≤ 7.97 psi |
| Storage | Protected from light, dry |
Values marked * are nominal. Always confirm against the current data sheet.
